HP Neoware Thin Clients - HP Neoware e90 - HP Neoware Thin Client Service Reference Guide

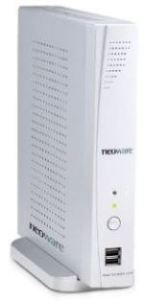

The
e90 with Windows XPe is targeted at customers needing an ideal
combination of performance, features, and price. With a fast processor,
support for legacy and USB ports, and 2 serial ports, this thin client
is ideal especially for those customers with many legacy options and
accessories for thin clients. Upgradeable flash/RAM and an integrated
wireless option mean this thin client offers an optimal combination of
eatures in a space-saving design. The e90 is designed to work in both
server-based computing (SBC) as well as Virtual Desktop Infrastructure
(VDI) environments. Strengths include:
- Ideal for running local applications such as Windows Media Player, Macromedia Flash, Firefox, Internet Explorer, and Java
- Two serial ports – ideal for supporting legacy options and accessories
- Available, fully integrated wireless option with no external antenna
- Fully integrated wireless option with no external antenna
- Internal power supply
- 4 USB ports (2 on front, 2 on back)
- 1 parallel port
- 2 PS/2 ports
- 10/100 ethernet
- RJ-45 jack
- Internal USB port
- DDR2 memory
- Operating system options:
- Linux
- Windows CE
- Windows XPe
- Windows XPe Plus

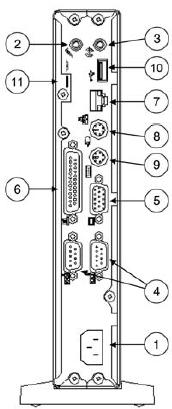

Components
| (1) | Power supply connector |
| (2) | Microphone in jack |
| (3) | Speaker out jack |
| (4) | Serial port |
| (5) | Monitor port |
| (6) | Parallel port |
| (7) | 10/100 BaseT Ethernet port |
| (8) | Mouse port—PS/2 |
| (9) | Keyboard port—PS/2 |
| (10) | USB ports |
| (11) | Security slot |
| (10) | USB ports |
| (12) | Power indicator LED |
| (13) | Network activity indicator LED |
| (14) | On/Off switch |
Specifications
e90 specifications based on operating system
| Flash/RAM (MB, DDR2) | ICA/RDP | Emulation | Web browser | Video | |
| Linux | up to 128/256 | ICA/Rdesktop | TeemTalk | Netscape Navigator/Firefox | Up to 1600x1200 at 32-bit color |
| Windows CE | up to 128/256 | ICA/RDP | TeemTalk | Internet Explorer | Up to 1600x1200 at 32-bit color |
| Windows XPe | up to 1024/512 | ICA/RDP | TeemTalk | Internet Explorer 6.0 | Up to 1600x1200 at 32-bit color |
| Windows XPe Plus | up to 0/512 | ICA/RDP | TeemTalk | Internet Explorer 6.0 | Up to 1600x1200 at 32-bit color |
e90 Linux specifications
| Part number | Flash/RAM (MB, DDR2) | Software clients | Video |
| DC-02-GD | 128/256 | ICA, RDesktop, TeemTalk, Netscape, X.11 | Up to 1600x1200 at 32-bit color |
e90 Windows CE specifications
| Part number | Flash/RAM (MB, DDR2) | ICA/RDP | Emulation | Web browser | Video |
| DC-01-GD | 128/256 | ICA/RDP | TeemTalk | Internet Explorer 6.0 | Up to 1600x1200 at up to 32-bit color |
e90 Windows XPe specifications
| Part number | Flash/RAM (MB, DDR2) | ICA/RDP | Emulation | Web Browser | Video |
| DC-A3-KD | 512/256 | ICA/RDP | TeemTalk | Internet Explorer 6.0 | Up to 1600x1200 at 32-bit |
| DC-A3-KE | 512/512 | ICA/RDP | TeemTalk | Internet Explorer 6.0 | Up to 1600x1200 at 32-bit |
| DC-A3-PE | 1024/512 | ICA/RDP | TeemTalk | Internet Explorer 6.0 | Up to 1600x1200 at 32-bit |
e90 Windows XPe Plus specifications
| Part number | Flash/RAM (MB, DDR2) | ICA/RDP | Emulation | Web Browser | Video |
| DC-E3-0D | 0/256 | ICA/RDP | TeemTalk | Internet Explorer 6.0 | Up to 1600x1200 at 32-bit |
| DC-E3-0E | 0/512 | ICA/RDP | TeemTalk | Internet Explorer 6.0 | Up to 1600x1200 at 32-bit |
e90 Hardware specifications
| Processor | VIA Eden 800 MHz |
| Flash/RAM | Standard: 128MB Flash ROM/256MB DDR2 RAM Maximum: 1GB Flash ROM/512MB DDR2 RAM |
| Video | Maximum video resolution and refresh rate:
|
| Audio | Ports: microphone in, speaker out – 1/8 inch (3.5 mm) jacks Internal speaker |
| Networking | Autosensing, 10/100 Ethernet, RJ-45, WakeOnLAN, PXE boot External USB wireless* options (a/b/g) |
| I/O | Serial connector – one D-Sub 9-Pin Parallel connector – one D-Sub 25-Pin USB 2.0 connectors – four (two front, two back) PS/2 connectors – one keyboard, one mouse |
| Peripheral support | Local printer support in ICA, RDP, and local applications** USB drive support (including flash drives)** USB smart card support** USB biometrics device support** Touch screen support |
| Physical specifications | Dimensions: 1.6" W x 9.3" H x 8.7" D (4.2 cm x 23.9 cm x 22.2 cm) Weight (with keyboard): 8.5 lbs (3.9 kgs) |
| Environmental | Operating temperature: 32-95° F (0-35° C) Operating humidity: 20-80% non-condensing |
| Power requirements | 100-240 VAC, 50-60 Hz 25 W typically |
| Certifications | FCC, CE, VCCI, TUV GS, C-TICK, cUL, GOST, SABS, S-MARK, CCC, WEEE, RoHS |
| *Wireless access point and Internet service required and is not included. **May require additional device drivers from manufacturer. |
|
