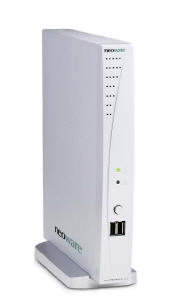

HP Neoware e140 Thin Client - Overview


Product description
Highly expandable and flexible VGA and DVI monitor outputs with native dual head video support Via Eden 1 GHz processor Includes four USB 2.0, two serial, one parallel, PS/2 keyboard and mouse ports, an optional PCI slot (for video cards, wireless cards and network cards) Available with NeoLinux, Windows CE, and Windows XPe Management tools provide support for remote configuration, remote shadowing, connection cloning, image cloning, global image updates, scheduled updates, and snap-ins for modular image changes HP Neoware e140 is also compatible with HP Neoware Image Manager, providing the ability to stream operating systems and applications on demand, providing all the benefits of thin clients with all the usability and performance of PCs
Product Features
Part Number DD - CA22/P680 (V4)
Part Number BK - CA10/P640 - 1G
Part Number BL - CA10/P640
Processor DD - CA22/P680 (V4) / BK - CA10/P640 - 1G

  • VIA 1GHz CPU


BL - CA10/P640

  • VIA 800 MHz CPU
Memory Flash Memory: 128 MB – 1GB (Available with no Flash for HP Neoware Image Manager Models)

System Memory: 128 MB – 1 GB (DDR2 RAM)
Graphics VIA S3
Mode Refresh rates Color depth
8-Bit Color 85 Hz Up to 1600x1200
16-Bit Color 85 Hz Up to 1600x1200
32-Bit Color 85 Hz Up to 1280x1024
DVI NA 1280x1024
Input/Output/ Peripheral Support
  • Keyboard: PS/2
  • Mouse: PS/2
  • Printer: Local support in ICA, RDP and local applications (may require additional drivers from manufacturer.)
  • Video: DVI, analog or both
Audio Output

  • Speaker Out – 1/8 inch jacks
  • Internal Speaker
Security
  • Slot for Kensington Cable Lock
  • ActivIdentity USB Smart Card Reader, vendor models GBURR200 & GBUR300P025
  • GemAlto Smart Cards (Windows XPe models only)
  • BioPassword (Special XPe Snap-in)
Server-based Computing Protocols
  • ICA
  • RDP *
  • RDesktop *
  • X.11/XDM *
  • HP Neoware TeemTalk Terminal Emulator.


NOTE: * RDesktop is standard on NeoLinux models, X.11/XDM available on NeoLinux models, RDP is standard on Windows CE and Windows XPe models.
Networking
  • Autosensing
  • 0/100 Ethernet
  • RI-45
  • WakeOnLAN
  • PXE Boot
  • External USB Wireless Options (a/b/g)
I/O ports and connectors
  • 2 – Serial Port – D-Sub 9-Pin Male Connector
  • 1 – Parallel Port – D-Sub 25-Pin Female Connector
  • 4 (2 front, 2 back) – USB Ports – Type A 2.0
  • 2 – PS/2 Ports (1 keyboard, 1 mouse)
  • PCI expansion slot
Server OS Compatibility / Citrix Presentation Server 4.0 including the Desktop Broker feature
Support Citrix Metaframe Presentation Server 3.0, Citrix Metaframe XP Presentation Server, Citrix Metaframe 1.x, Windows 2000/2003 Server Terminal Services, Windows 2000 Advance Server Terminal Services, Windows NT 4.0 Terminal Server Edition, VMware Virtual Desktop Infrastructure using RDP, Linux Terminal Server Project (LTSP) *, Most mainframes and midrange servers **
Software Overview
Feature Description
Resident Operating System Windows CE, Windows XPe (Also available in VDI Edition), Windows XPe Plus, NeoLinux
Server OS Compatibility/ Support
  • Citrix Presentation Server 4.0 including the Desktop Broker feature
    NOTE: Requires minimum ICA client version 9.x
  • Citrix Presentation Server 4.5 including the Desktop Broker feature
    NOTE: Requires minimum ICA client version 10.x
  • Citrix Metaframe Presentation Server 3.0
  • Citrix Metaframe XP Presentation Server
  • Citrix Metaframe 1.x
  • Windows 2000/2003 Server Terminal Services
  • Windows 2000 Advance Server Terminal Services
  • Windows NT 4.0 Terminal Server Edition VMware Virtual Desktop Infrastructure using RDP
  • Linux Terminal Server Project (LTSP)


NOTE: * Most mainframes and midrange servers **
