HP Neoware Thin Clients - Introduction - HP Neoware Thin Clients

This guide provides information about the following HP Neoware thin client models:

• e140
• e90
• c50
• e370
• m100
• e901

Information provided includes a feature list, components, and operating system specifications.

This guide also provides decoding information about HP Neoware part numbers, summarizes model features, lists available models, provides flash and RAM information, and provides detailed information about operating systems.

Naming convention for HP and HP Neoware thin clients

All of the HP Neoware models produced for shipment following December 1, 2007 will use a new HP standard for product identification SKU decoding.

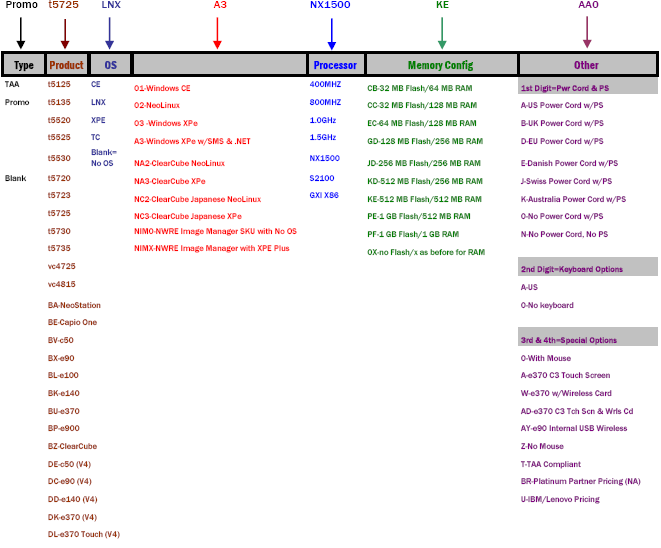

The lettering along the top of the table Promo t5725 LNX A3 NX1500 KE AA0 is an example of the SKU format that will be used on the thin clients.

Serial number decoding

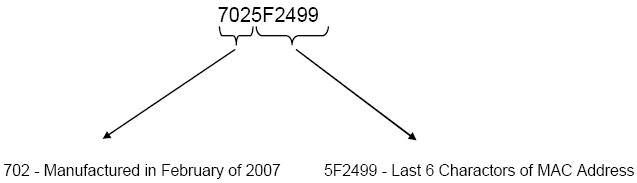

The scheme for serial numbers is (Year)(Month)(last 6 digits of the MAC address). For example, 604578F3F was built during April 2006 and the last six digits of the MAC are 57-8F-3F. Neoware normally looks up warranty entitlement in their SNAP database; however, the you can also estimate this by determining the manufacture date and adding 3 months channel/distribution time.

Decoding Neoware legacy part numbers

The following information indicates how to decode a Neoware part number.

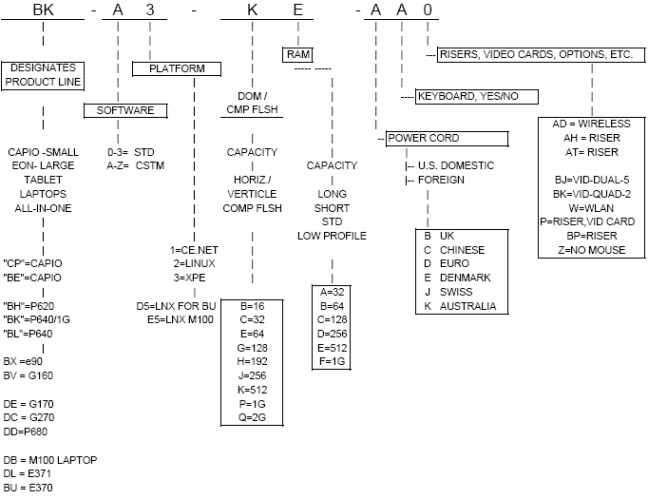

Neoware part numbers use the following format:

• The Part Number is in aa-aa-aa-aaa format. The final triplet “aaa�? is not included unless there are specific hardware options or differences.
• The model numbers are in aa### format.

In this example, “DD�? indicates the P690�? product line, “A3�? indicates that it has a custom version of Windows XPe, and “KE�? indicates that it has 512MB flash and 512MB RAM.

The Bcom code (the “CA�? code) is CA22. This indicates that it is an e14 V4 thin client.

BL-03-KD corresponds to an E100 with a P640 motherboard running a standard Windows XP image, 512 MB of Flash memory, and 256 MB of RAM. Customized units or "specials" will have letters A-Z in the OS designation (for example, BL-A3-KD).

Model number DC-03-KE (Bcom number DC). The DC indicates that this is an E90 unit with the newer V4 hardware. The 03 indicates the unit is running Windows XPe. The KE indicates the unit has 512 MB of flash and 512 MB of RAM.

HP Neoware thin client features

Product list

The following table provides a list of Neoware products, including Bcom, board type, and model type information.

The Bcom number is the easiest way to quickly determine a product. The Bcom number is also the most reliable because the it will always appear on the certification label of the product, and the certification label is a required product marking. Many products will also include the Part Number sticker, but that sticker is not required.

PRODUCT LIST
Marketing Number	Bcom number	Board type	Model type
E300 (early)		FP1515	BB
E300	CA8	ST1520	BD
Capio One	CA5	G150	BE
E100 (early)	CA2	P620	BH
E140	CA10	P640-1G	BK
E100 (latter)	CA10	P640	BL
e900	CA11		BP
E350	CA13	TV-TM1	BR
E370	CA14	TR7670	BU
C50	CA15	G160	BV
E91	CA16	G280	BY
E90	CA9	G260	BX
M100		TCM160	DB
E90 V4 Int Wireless Option	CA21	G270	DC
E140 V4	CA22	P680	DD
C50 V4	CA19	G170	DE
E371 V4	CA23	TR7671	DL

Flash and memory size

The table in this section indicates how to determine HP Neoware thin client RAM and flash size based on part number, as follows:

• The 5th character in a part number represents flash memory.
• The 6th character in a part number represents RAM.

For more information about decoding HP Neoware thin client part numbers, see Decoding Neoware legacy part numbersdecodingNeoware legacy part numbersNeoware legacy part number decoding .

FLASH AND MEMORY SIZE
	Flash size (MB)	Memory (MB)
A		32
B	16	64
C	32	128
D		256
E	64	512
F		1024
G	128
H	192
J	256
K	512
L	1024
P	1024
Q	2048
